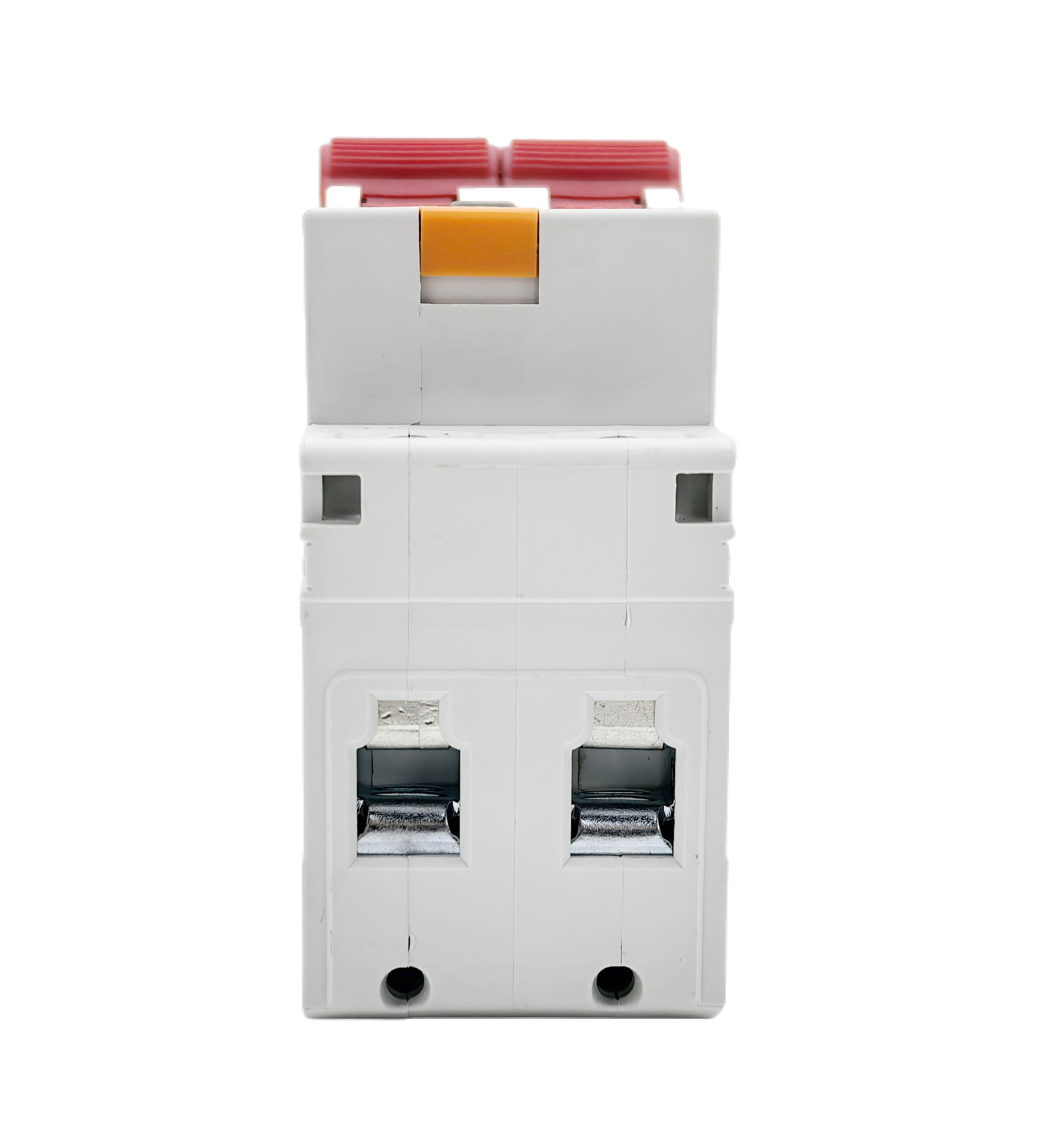

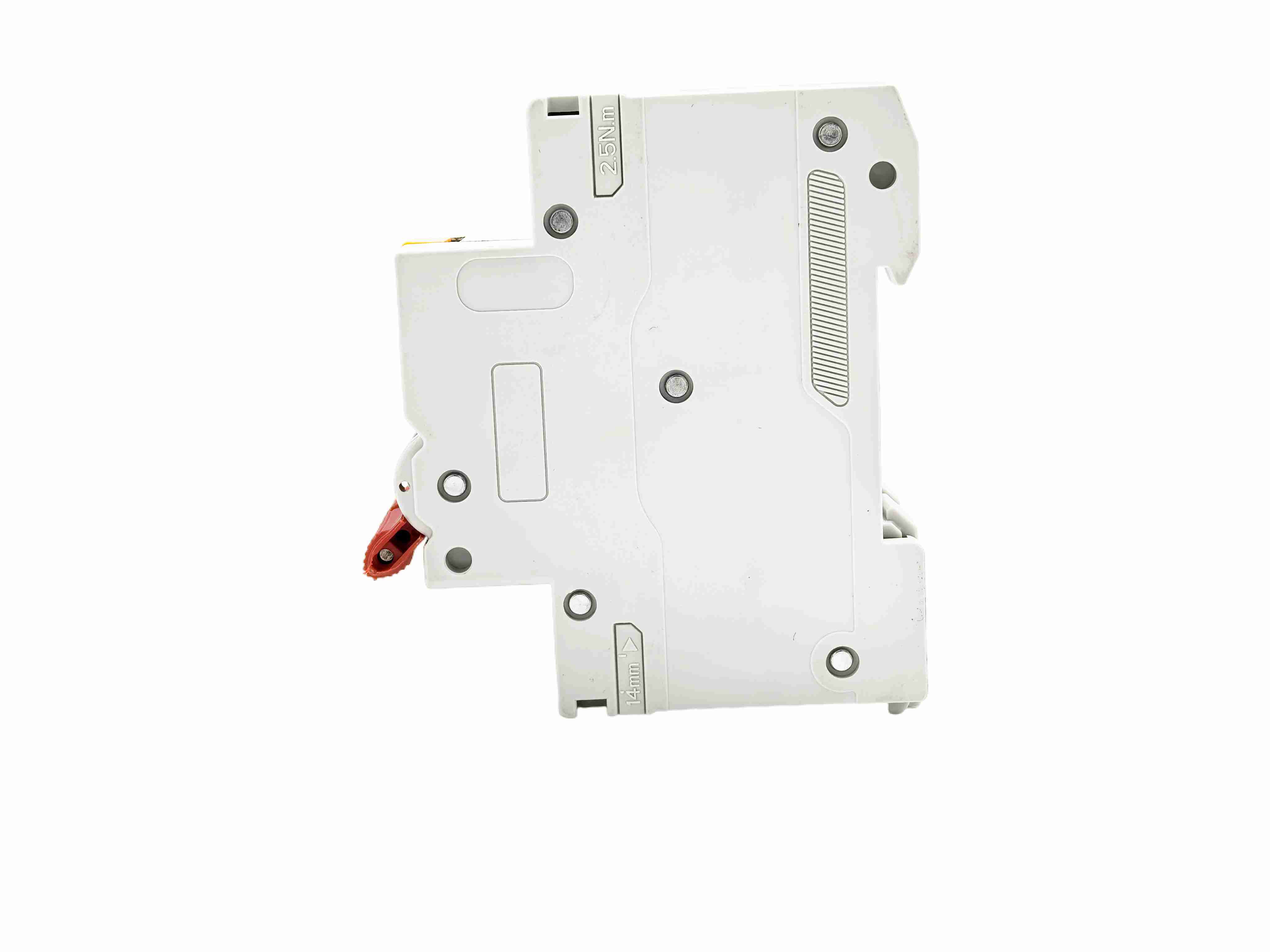

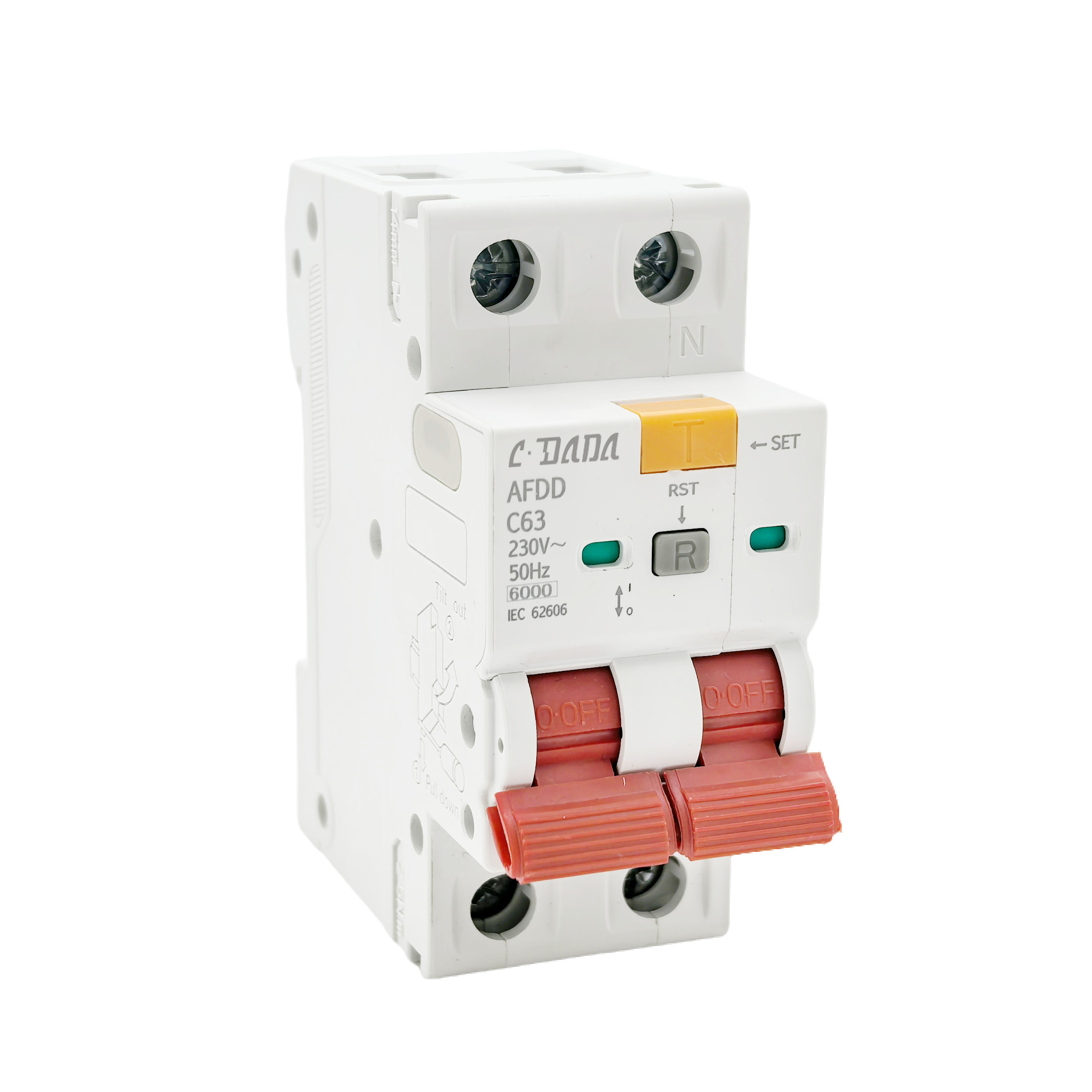

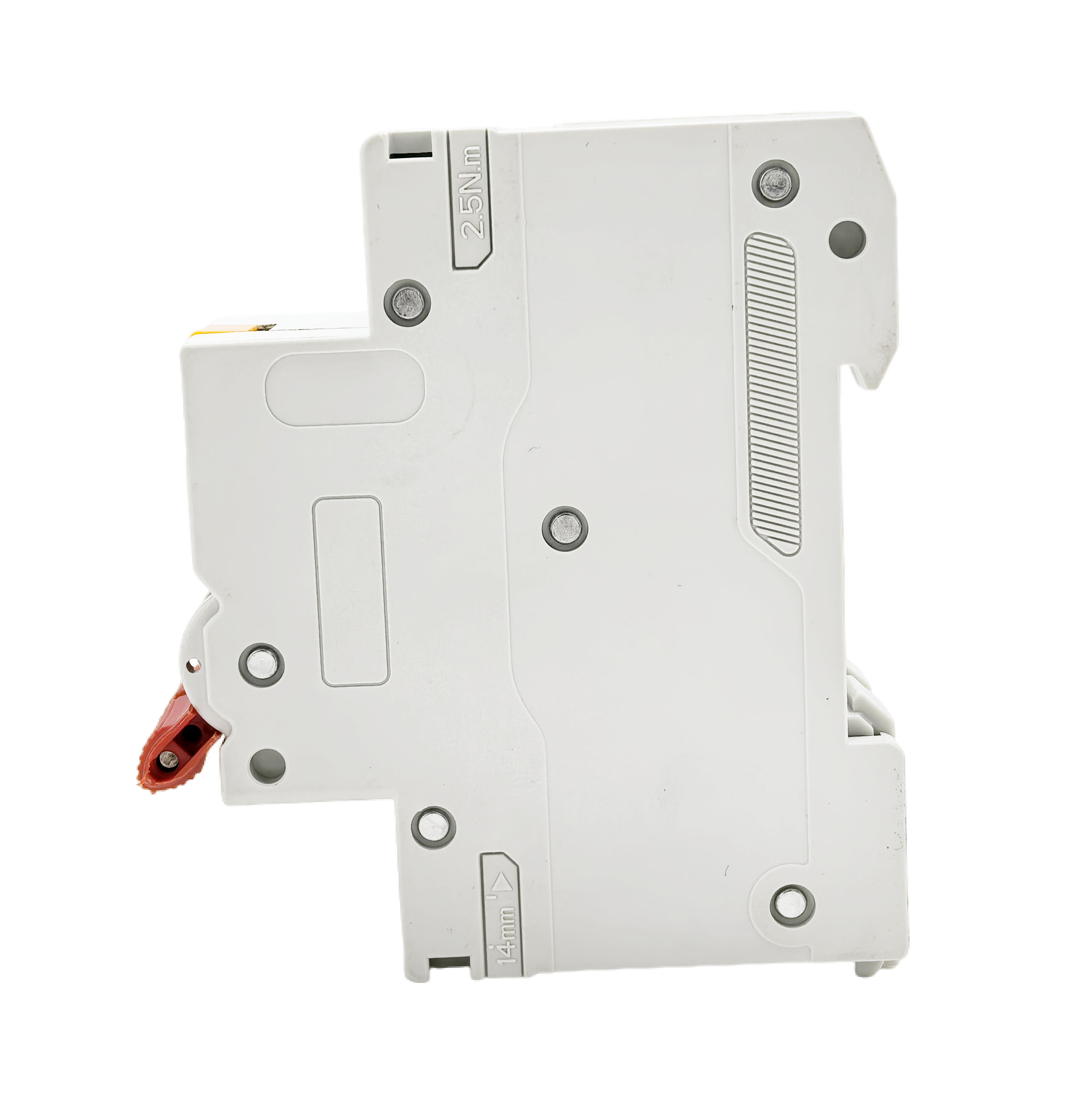

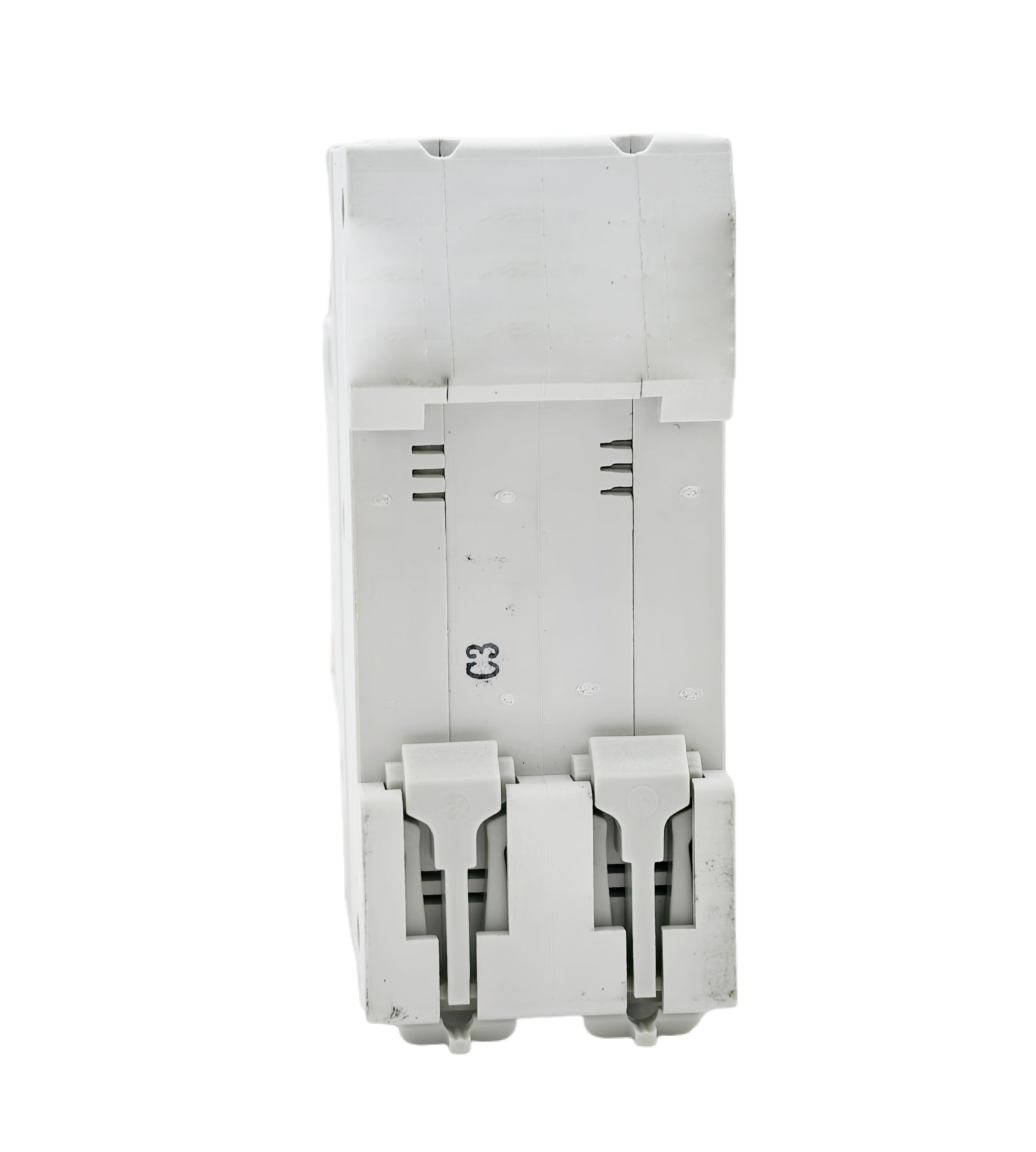

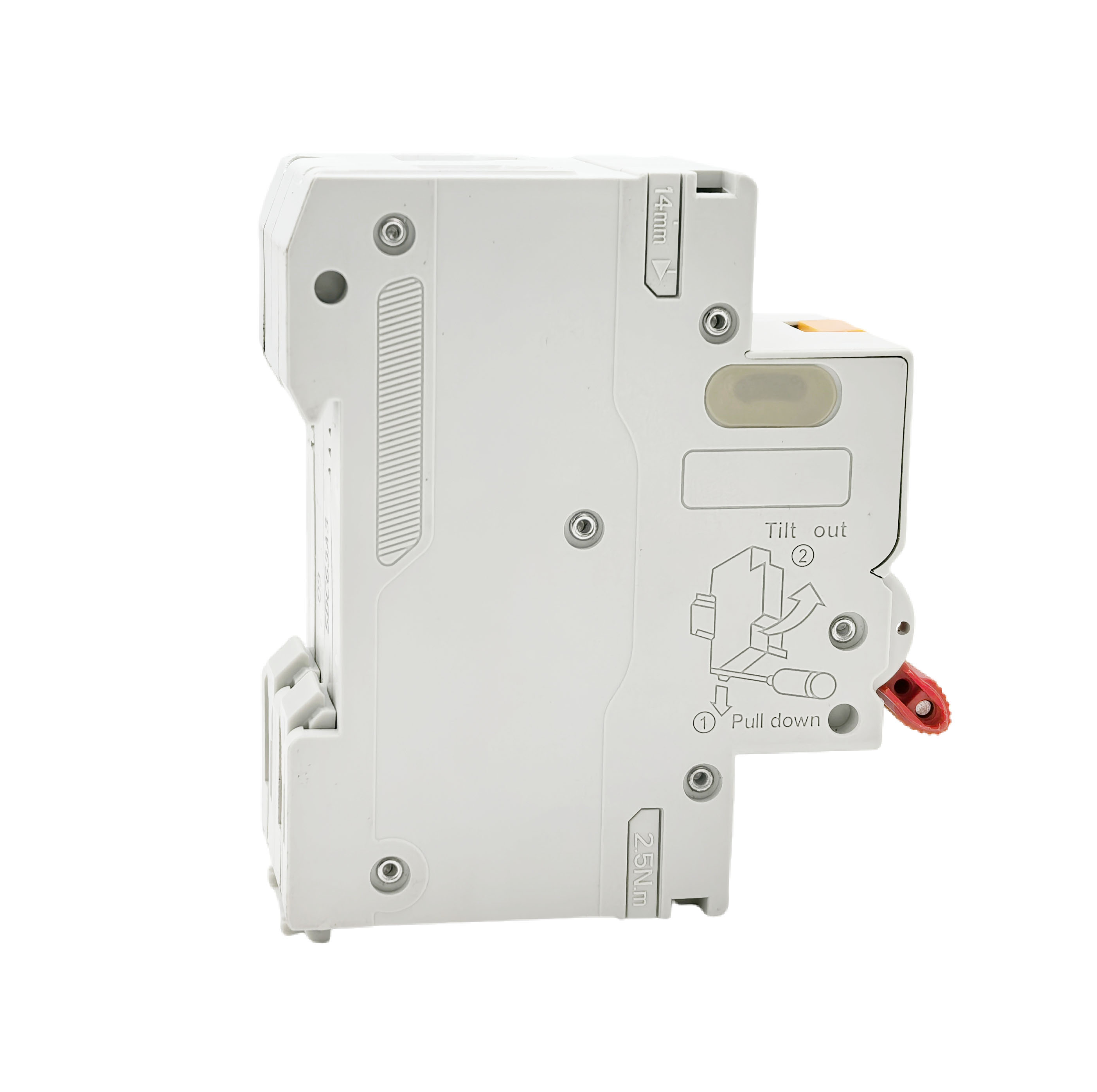

The arc fault dectection device (hereinafter referred to as AFDD/AFDDLE) can effectively detect the fault arc in the access line, including the fault parallel arc and the fault series arc. When the fault arc causing fire is detected in the line, it can perform the function of disconnection and power-off to realize the purpose of early warning of fire. The arc fault dectection device is applicable to the electrical lines of 10kW and below in industrial and civil buildings. The length of the protection line should not be greater than 100m. The products comply with GB/t31143-2014 IEC62602 standard and can be applied to nursing homes, schools, commercial buildings, hotels, factories, warehouses, libraries, offices, family houses, and entertainment places.


  • Product Description
  • Specifications
  • Product Features
  • More Details

Product Description

The arc fault dectection device (hereinafter referred to as AFDD/AFDDLE) can effectively detect the fault arc in the access line, including the fault parallel arc and the fault series arc. When the fault arc causing fire is detected in the line, it can perform the function of disconnection and power-off to realize the purpose of early warning of fire. The arc fault dectection device is applicable to the electrical lines of 10kW and below in industrial and civil buildings. The length of the protection line should not be greater than 100m. The products comply with GB/t31143-2014 IEC62602 standard and can be applied to nursing homes, schools, commercial buildings, hotels, factories, warehouses, libraries, offices, family houses, and entertainment places.

Specifications

II)Technical Data Sheet

Items

Value

Model

AFDD without leakage protection/AFDDLE with leakage protection

Working power supply

Rated voltage: AC230V

Rated frequency

50Hz

Monitoring alarm

Fault arc alarm (load below AC63A)

Voltage

Rated value AC230V

electric current

Rated value: AC63A and below

Overall dimensions

82*35.2*62mm

Installation method

35mm guide rail installation

Run indicator

Normal operation, the indicator flashes

SET

Set button

Breaking capacity

Rated short-circuit breaking capacity ICN (KA): 6

Protection level

IP20

Wiring capacity

1~25mm

Outlet characteristics

C,D

Electrostatic discharge resistance

Air discharge > 8; Contact discharge > 6

Pulse group anti-interference

6KA

Surge impact interference

4KA

Operating ambient temperature

-23~+55℃

Damp heat resistance

Type 2

class of pollution

2

Installation type

Level M

altitude

2000m

Installation environment

Ground without significant vibration and impact

Mechanical life

20000cycles

Electrical life

10000cycles


Product Features

T key: Test key - Multi-functional press key

Green light status: Running status

Press the "T key" and release it quickly (note that it is triggered by release) to test the  the breaking function of AFDD protection.

Red light flashing status: Fault arc alarm status.

The alarm will be immediately lifted after pressing the "T key"

Set the AFD detection mode:

When the green light is on, hold down the "T key "for about 3 seconds and the green light will go off. This indicates that you have entered the Settings status. Press the "T key" again, and the green light will flash to indicate the current working mode. It switches once each time it is pressed!

There are four working modes in total:

l Flash once: Anti-interference mode

l Flash twice: Slow mode

l Flash three times: Standard mode

l Flash four times: Enhanced mode (not a dedicated scene, not recommended for use)

It takes effect immediately after switching. Wait for 10 seconds and it will automatically exit the setting state.

You can also long press the "T key" to exit.
